AC Infinity AIRLIFT 16-Inch Shutter Exhaust Fan

AC Infinity AIRLIFT 16-inch Shutter Exhaust Fans provide high CFM to exhaust heat, moisture, odor, and dust from larger spaces in various environments. Durable and light-weight, these ventilation fans are equipped with an innovative, energy-efficient EC-motor that also reduces noise and vibration.

Constructed from durable materials, this AC Infinity exhaust fan comes with a temperature and humidity controller.

Designed for Durability

With corrosive-resistant steel shutters that automatically shut when not in use, the AIRLIFT ventilation fan can stand up to rough weather and is IP-44 rated to be resistant to liquid and dust. Its light-weight aluminum blades and impeller give it weight-balance, which helps reduce vibration and noise, creating sound levels at about 70 dB.

High 2560 CFM airflow make this fan a great choice for commercial applications like greenhouses, agricultural and livestock spaces. It is useful in larger homes in attics, studios, workshops, and detached garages to reduce moisture, heat, and odors.

Innovative Motor

AC Infinity’s innovative EC-motor is controlled electronically using Pulse Width Modulation (PWM) so fans maximize airflow while reducing power consumption and noise. Dual ball bearings in the fan make is smooth-running and quieter than other ventilation fans.

Program Temperature & Humidity

The ALT16 model comes with an intelligent controller programming temperature and humidity with adjustable fan speed. This model also includes a timer for setting custom speeds or continuous run.

Plug the 12-foot sensor probe into the controller for temperature & humidity readings while controlling up to two AIRLIFT series fans. Includes alarm warnings, fan failure alerts, eco-mode, and backup memory.

Additional Features

• Fan Size: 16-inch fan has overall dimensions of 19.09 x 19.09 x 7.72 inches.
• Airflow: Maximum airflow for these fans is 2560 CFM.
• Required Mounting Hole: 16.92 x 16.92 inches.
• Controller Cord: The controller has a 20-foot cord for great versatility in placement.
• Fan-Speed Controller Dimensions: 3.34 x 2.94 x 0.51 inches

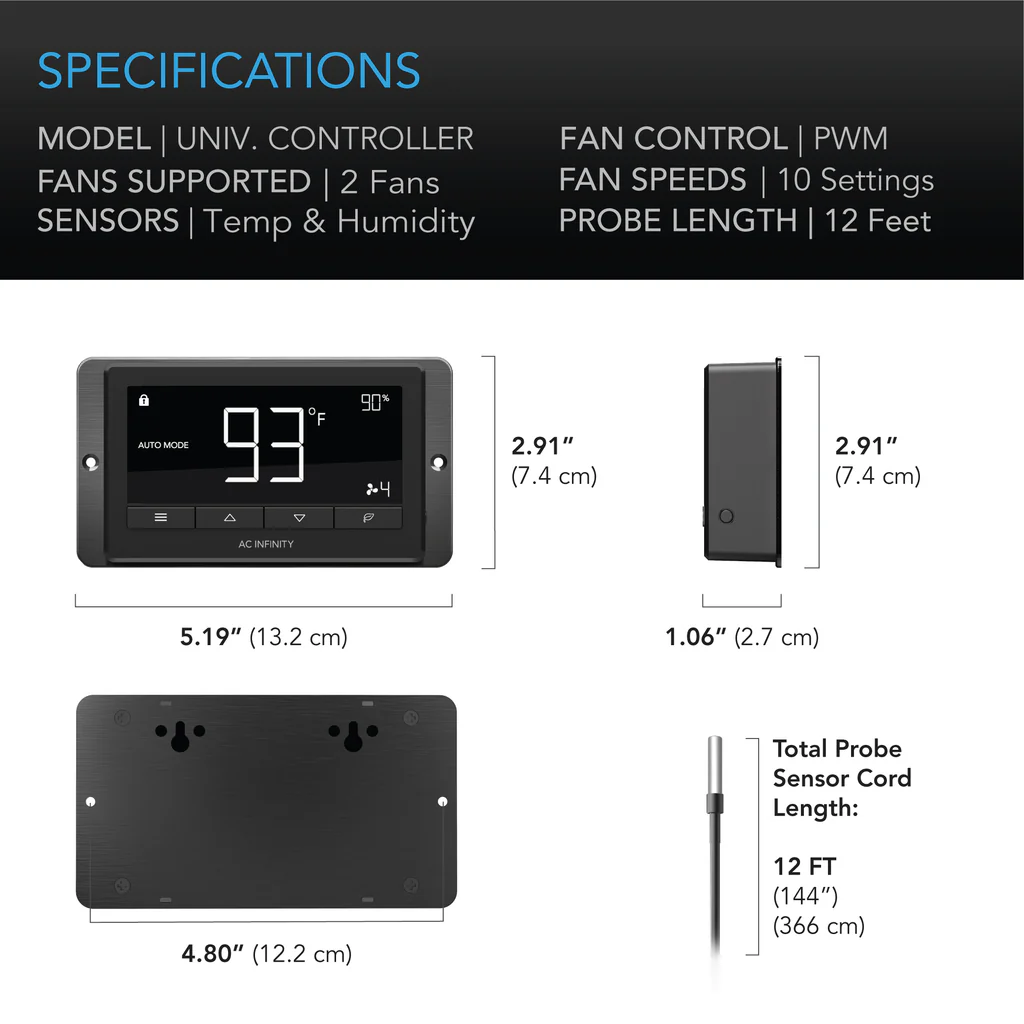

• Temp/Humidity Controller Dimensions: 5.19 x 2.91 x 1.06 inches.
• Power Cord Length: 8-foot power cord for easy installation.
• Mounting: Can be mounted vertically or horizontally.

Summary

AC Infinity AIRLIFT 16-inch Shutter Ventilation Fans are made from high-quality, durable materials, and feature an EC-motor for greater stability and less noise. Available with either an 8-speed controller or programmable temperature & humidity controller.
