Shure BLX24/PG58 UHF Wireless Microphone System - Perfect for Church, Karaoke, Vocals - 14-Hour Battery Life, 300 ft Range | Includes PG58 Handheld Vocal Mic, Single Channel Receiver | H8 Band
Shure BLX24/PG58 UHF Wireless Microphone System - Perfect for Church, Karaoke, Vocals - 14-Hour Battery Life, 300 ft Range | Includes PG58 Handheld Vocal Mic, Single Channel Receiver | H8 Band
WIRELESS FREQUENCY BAND SELECTION - Before purchasing, please ensure that the wireless frequency band you select works in your area (refer to Shure website for details > search Shure Wireless Frequency Finder).
SUPERIOR AUDIO - Get the show going with no strings attached. Professional Shure sound
SUPERIOR AUDIO - Get the show going with no strings attached. Professional Shure sound
$658
Quantity
-
DetailProduct Description
WIRELESS FREEDOM, MADE SIMPLE. The ideal entry-level wireless microphone system for small venues. BLX Wireless Systems provide professional-quality sound with simple setup and an intuitive interface. Choose from a wide range of transmitter form factors (handheld, bodypack, headworn, lavalier, instrument clip-on) and use it with single- and dual-channel, as well as rack-mounted receivers.

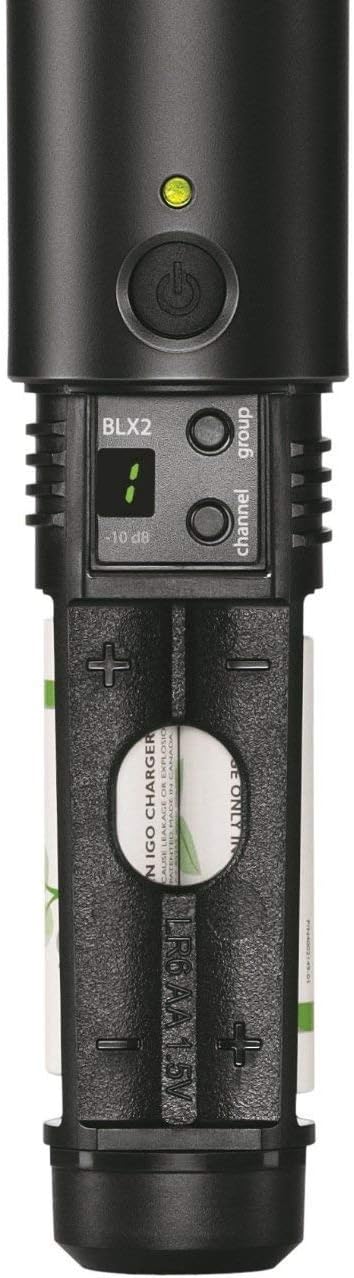

From the ManufacturerTransmitters: At a Glance- Two AA batteries (included) provide up to 14 hours of continuous use
- Up to 300 feet (91m) transmission radius (line of sight)
- Quick and easy receiver frequency matching (GROUP and CHANNEL selection buttons)
- Two-color transmitter status indicator LED:
- Green: "Ready"
- Rapidly Flashing Red: "Controls Locked"
- Solid Red: "Battery Power Low" (less than 1 hour remaining)
- Flashing Red/Power Down: "Batteries Dead" (replace batteries to repower transmitter)
- TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
- Tactile/easily accessible On / Off switch
- Adjustable gain control
- Lightweight, rugged construction

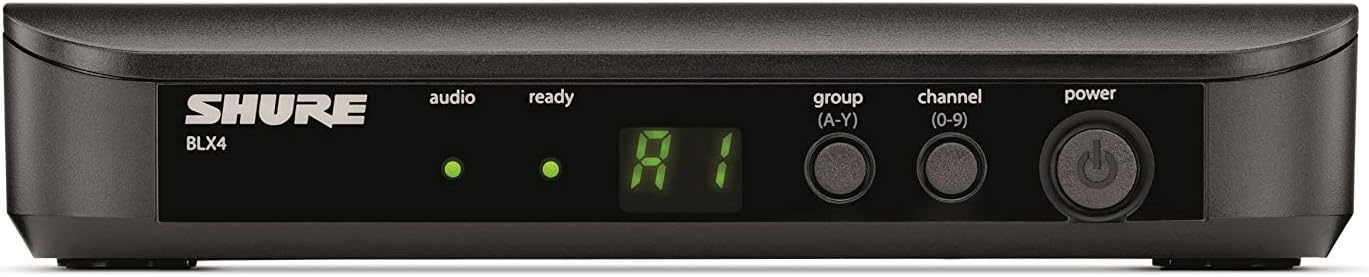

Receivers: At a Glance
- BLX Receiver Options
- One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
- Up to 12 compatible systems per frequency band (region-dependent)
- Two-color audio status indicator LED:
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)

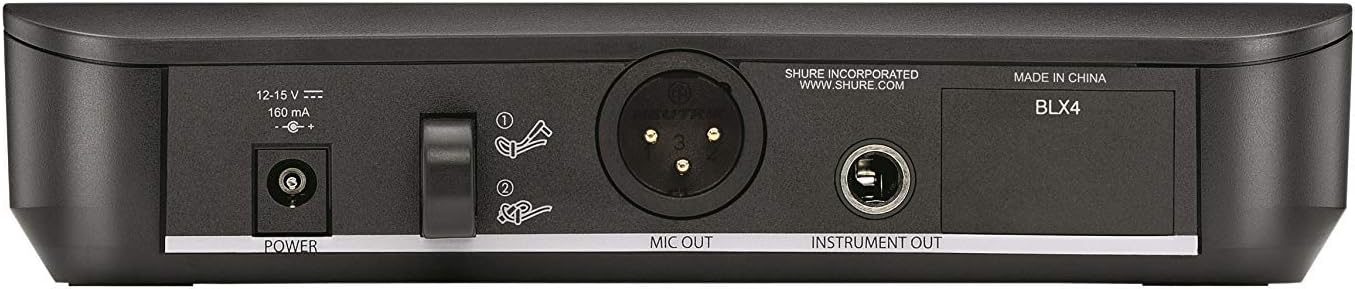

- XLR and ¼" output connectors
Overview
Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.
What's in the Box?Includes BLX4 Single Channel Wireless Receiver, BLX2 Handheld Transmitter with PG58 Microphone, Microphone Clip, Power Supply, 2 AA Batteries and User Guide.
BLX2 Handheld Transmitter Audio Input Level Gain: 0dB: -20 dBV maximum -10dB: -0 dBV maximum Gain Adjustment Range 10 dB RF Transmitter Output 10 mW, typical (varies by region) Dimensions 224mm X 53mm dia. (8 7/8 X 2 1/8 in.) Weight 218g (7.7 oz.) (without batteries) Housing Molded ABS Power Requirements 2 LR6 AA batteries, 1.5V, alkaline Battery Life up to 14 hours (alkaline) To view a detailed diagram of the BLX2 Handheld Transmitter, click here.BLX4 Single Channel Wireless Receiver Specifications Output Impedance XLR connector: 200 ohm, 6.35 mm (1/4") connector: 50 ohm Audio Output Level (Ref. 33 kHz deviation with 1 kHz tone) XLR connector: -27 dBV (into 100k ohm load), 6.35 mm (1/4") connector: -13 dBV (into 100k ohm load) RF Sensitivity -105 dBm for 12 dB SINAD, typical Image Rejection >50 dB, typical Dimensions 40mm X 188mm X 103mm (H x W x D) Weight >241g (8.5 oz.) Housing Molded ABS Power Requirements 12-15V DC @ 160mA supplied by external power supply (tip positive) Housing Molded ABS Power Requirements 12 to 15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive) To view a detailed front diagram of the BLX4 Single Channel Wireless Receiver, click here. To view a detailed back diagram of the BLX4 Single Channel Wireless Receiver, click here. BLX Handheld Transmitters Model BLX2/PG58 BLX2/SM58 BLX2/B58 Application Handheld Handheld Handheld For: Karaoke & Live Vocals Harmonica, Karaoke & Live Vocals Live Vocals & Podcast/Voiceover Microphone PG58 SM58 Beta 58A Operating Pattern Dynamic Dynamic Dynamic Polar Pattern Cardioid Cardioid Supercardioid Frequency Response Tailored Tailored Tailored Frequency Options H8, J10, K12, M15 H8, J10, K12, M15 H8, J10, K12, M15BLX Handheld Wireless Systems Model BLX24/PG58 BLX24/SM58 BLX24/B58 BLX24R/SM58 BLX24R/B58 Application Handheld Handheld Handheld Handheld Handheld For: Karaoke & Live Vocals Harmonica, Karaoke & Live Vocals Live Vocals & Podcast/Voiceover Harmonica, Karaoke & Live Vocals Live Vocals & Podcast/Voiceover Microphone PG58 SM58 Beta 58A SM58 Beta 58A Operating Principle Dynamic Dynamic Dynamic Dynamic Dynamic Polar Pattern Cardioid Cardioid Cardioid Cardioid Cardioid Frequency Response Tailored Tailored Tailored Tailored Tailored Frequency Options H8, J10, K12, M15 H8, J10, K12, M15 H8, J10, K12, M15 H8, J10, K12, M15 H8, J10, K12, M15 Other - - - Rackmount Receiver Rackmount ReceiverProduct Description
From the Manufacturer
BLX Wireless Systems
Transmitters: At a Glance
Receivers: At a Glance
Overview
What's in the Box?

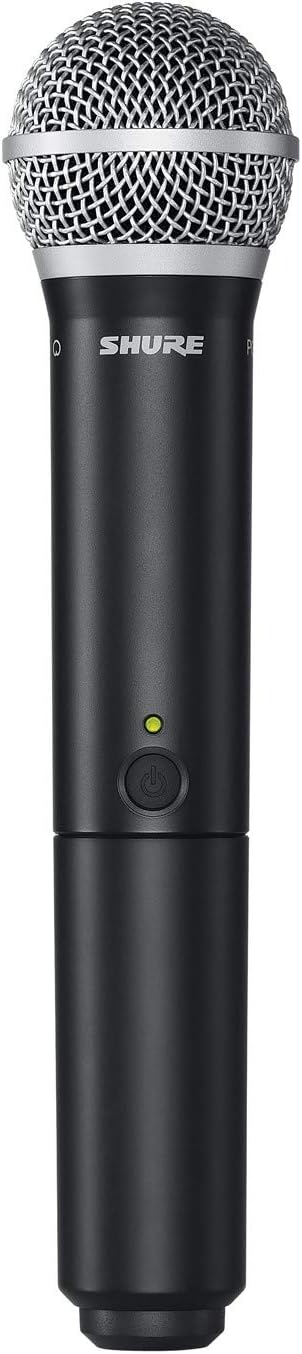

BLX2 Handheld Transmitter
BLX4 Single Channel Wireless Receiver Specifications
BLX Handheld Transmitters
BLX Handheld Wireless Systems
-
