rokkutoron Midi hutto・kontoro-ra- Midi Raider [domestic regular import goods]

■Overview

The MIDI foot controller located on many professional feet just like the right foot from Rocktron.
All Access has already been out of production, but the following model is Midi Raider, is finally here!
The functionality and ease of use are the same as All Access, but at a very affordable price.


■ 3 operation modes

3 operation modes include bank, thong, and remote.
With a variety of uses, players can choose the best way to use for themselves.

Bank Mode
In Bank Mode, you can divide the 120 presets into units of banks and then switch the bank to use. For example, we can customize it as follows:
(1) 5 of 1 to 15 switches can be set for preset selection, and 10 switches for effects on/off. In this case, the number of banks is 24. (5 presets x 24 banks = 120)

(2) 10 of 1 to 15 switches can be set for preset selection, and 5 switches for effects on/off. In this case, the number of banks is 12. (10 presets x 12 banks = 120)

【3】15 out of 1 to 15 switches for preset selection, the on/off switch is not set. In this case, the number of banks is 8. (15 presets x 8 banks = 120)

4. If you set all switches from 1 to 15 to turn on and off, it can also be used as a giant pedal board. In this case, the number of banks is 120.

Song mode
This machine can create a preset custom bank called a song. 15 presets per song and 150 songs. Plus, you can mix and match multiple thongs to create a set. 50 songs per set and can store 10 sets.

Remote Mode:
Automatically set the model, title, switch, etc. that support Locktron remote function. Tap delay, mute, boost, effect on/off, can be used automatically, without any special setting.


■MIDI function

Send any 5 commands at the same time call the preset
Memory your exclusive message up to 30 bytes of length for each preset
You can send program changes to 16 channels at the same time.
Transmits up to 15 instant access switch information.
Expression pedals can transmit 2 data.
MIDI RAIDER can be controlled via external equipment.


■Other Features

18 switches are made of metal for durability.
Easy to read display that allows you to easily set the title and set it up on stage.
All switches come with LED that indicates the ON/OFF state.
7 PIN MIDI OUT is powered by the rack equipment.
Every 120 presets can send over 36 MIDI commands including controls, changes, and commands.
MIDI filtering, damp/load, system exclusive
Choose from 0-127 or 1-128.
Copy presets, banks, songs, etc. is quick and easy.


■Specifications:

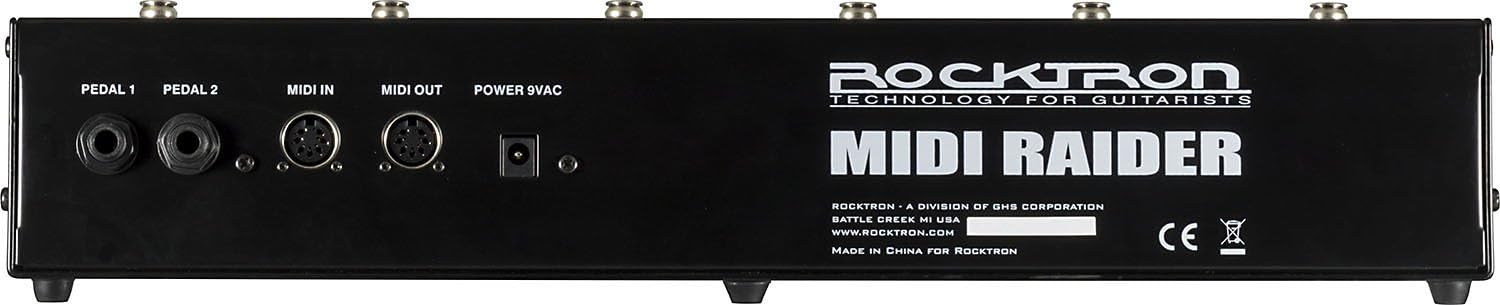

Input and output terminal: 7 pin MIDI IN, 7 pin MIDI OUT, 1/4" PEDAL INPUT x 2
Power supply: 9 V AC 1100 mA or higher
Dimensions: 10.2 x 15.6 x 3.5 inches (260 x 397 x 89 mm)
Weight: 7.5 lbs (3.85 kg).
