Allen & Heath DX012 12 XLR Output Audio Expander with AES Functionality
Allen & Heath DX012 12 XLR Output Audio Expander with AES Functionality
12 XLR output audio expander compatible with SQ and dLive (firmware 1.9 onwards) systems
AES outputs globally switchable between 44.1kHz, 48kHz, 88.2kHz, 96kHz; Cascade mode allows daisy-chaining of 2 DX16/DX12 Expanders for additional I/O
Redundant DX connection to compatible hardware; can ad
AES outputs globally switchable between 44.1kHz, 48kHz, 88.2kHz, 96kHz; Cascade mode allows daisy-chaining of 2 DX16/DX12 Expanders for additional I/O
Redundant DX connection to compatible hardware; can ad
$3198
Quantity
-
Detail

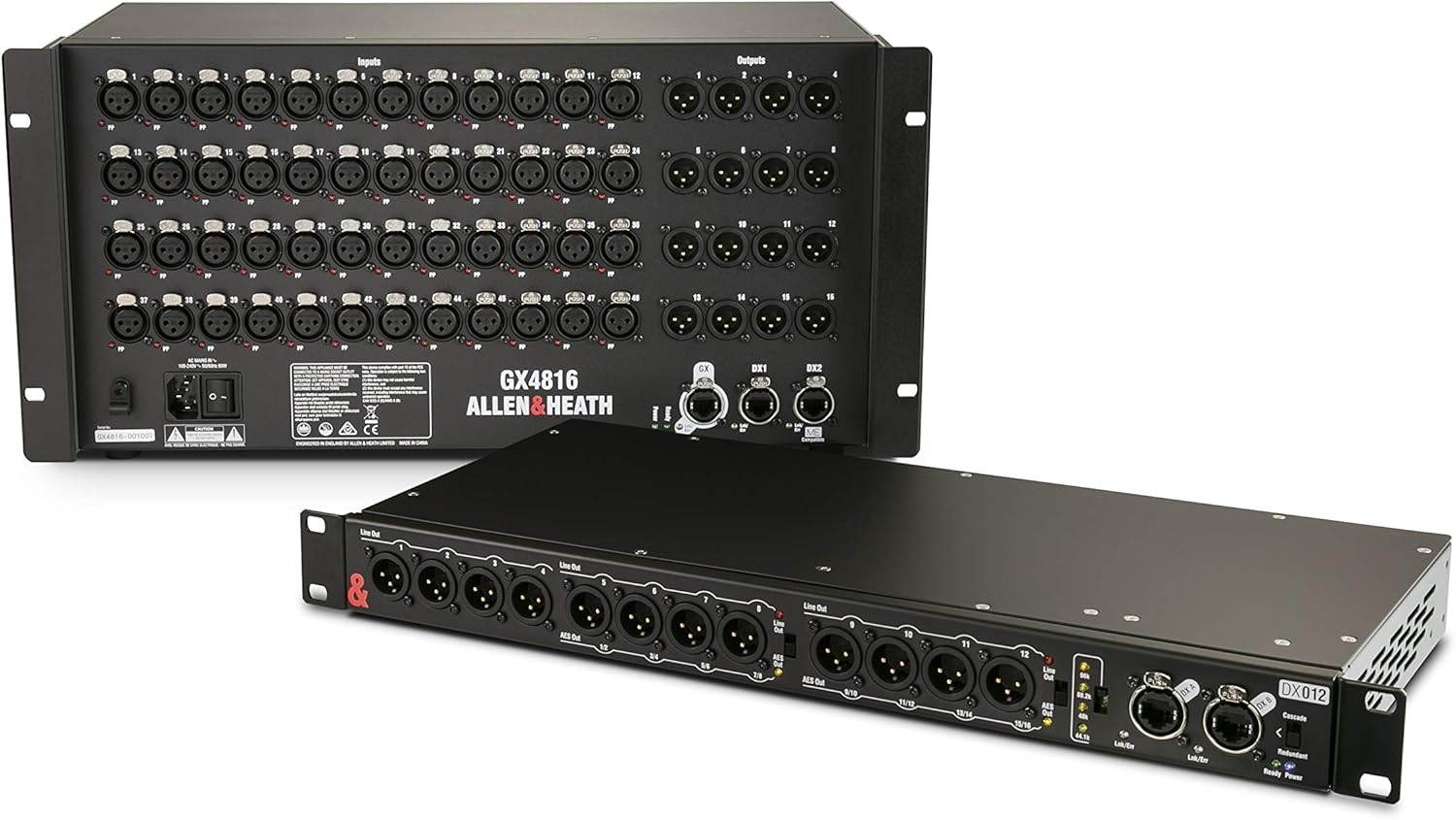

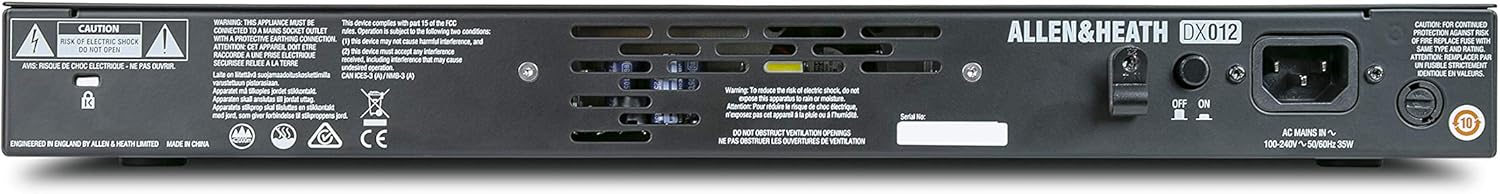

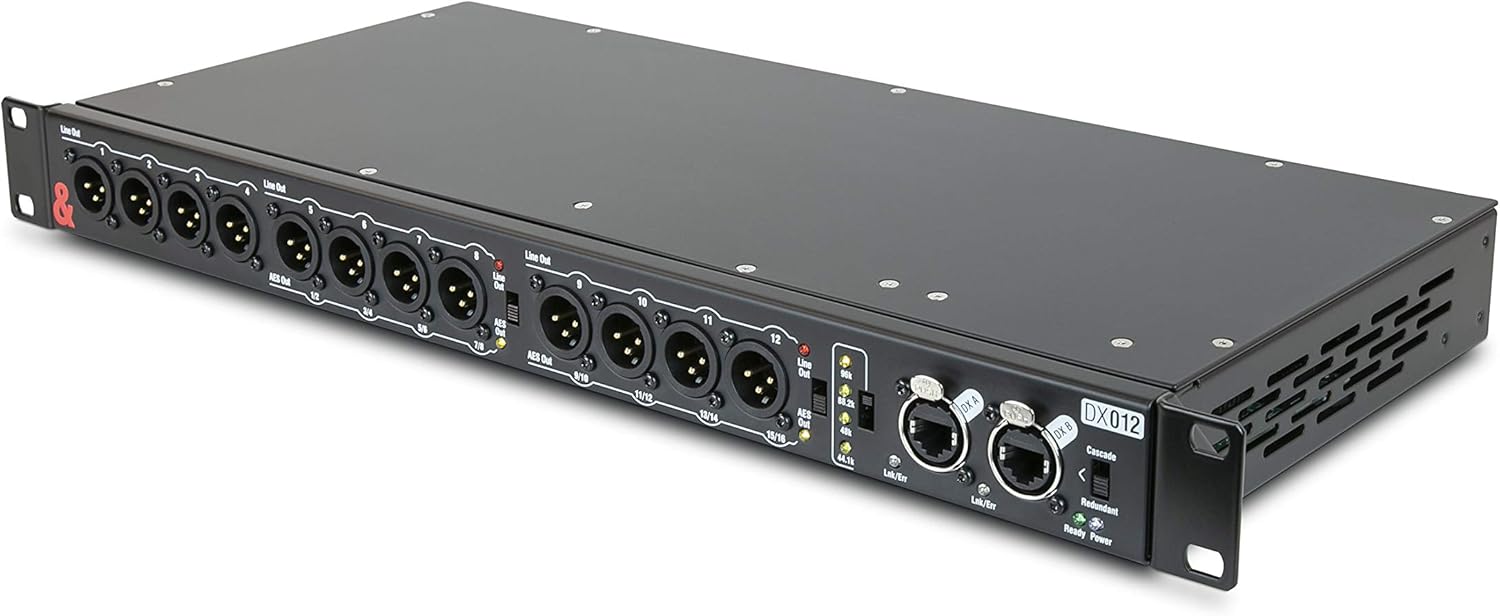

The DX012 is a 19” rack-mountable 96kHz output expander for Allen & Heath digital mixing systems. Each GX4816 provides 12 XLR outputs, configurable as 12 analog line outputs, 8 analog line outputs plus 4 stereo AES outputs, or 4 analog line outputs plus 8 stereo AES outputs. The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, SQ mixer or upstream DX expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.
-
