Eurorack Module - EVENT DIY Kit - Advanced Eurorack Synthesizer Module with Modular Synth Capabilities
Eurorack Module - EVENT DIY Kit - Advanced Eurorack Synthesizer Module with Modular Synth Capabilities
One of the most versatile analog modules available.
ONSET: Controls the positive rate (time) of change in voltage.
DURATION: Controls the negative rate (time) to change in voltage
HEIGHT: Controls the held voltage level when a continuous gate us applied.
TRACK: 1v/oct input. It is partic
ONSET: Controls the positive rate (time) of change in voltage.
DURATION: Controls the negative rate (time) to change in voltage
HEIGHT: Controls the held voltage level when a continuous gate us applied.
TRACK: 1v/oct input. It is partic
$153.98
Quantity
-
Detail

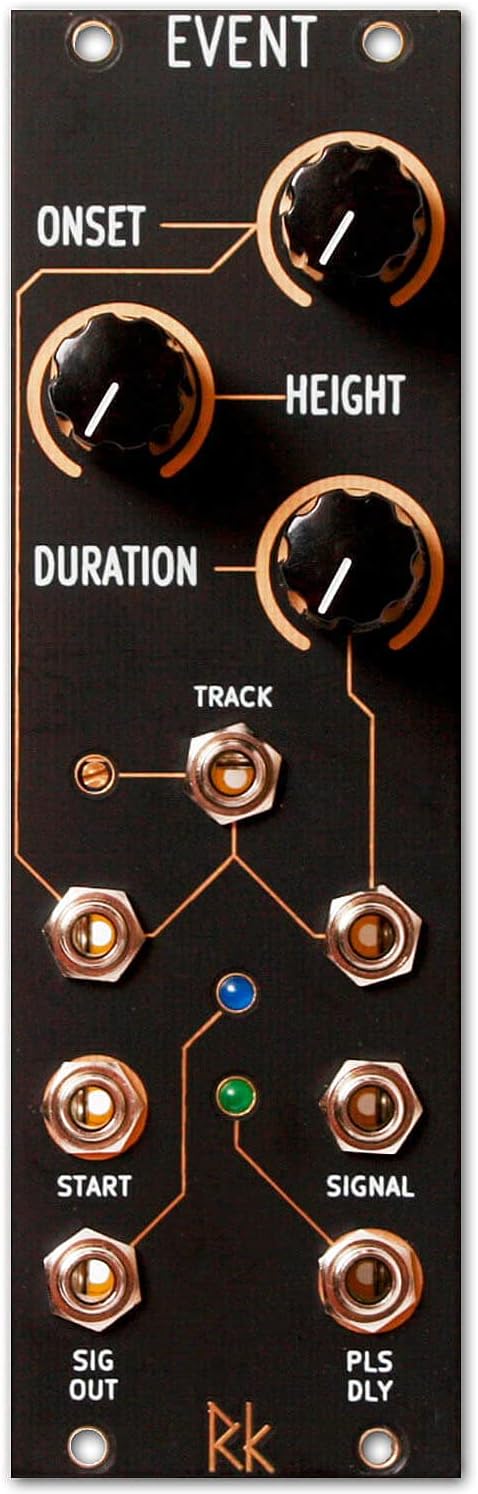

VCO, envelope, slew limiter (portamento), waveshaper, LFO, envelope follower… The EVENT does it all, making it one of the most versatile analog modules available.

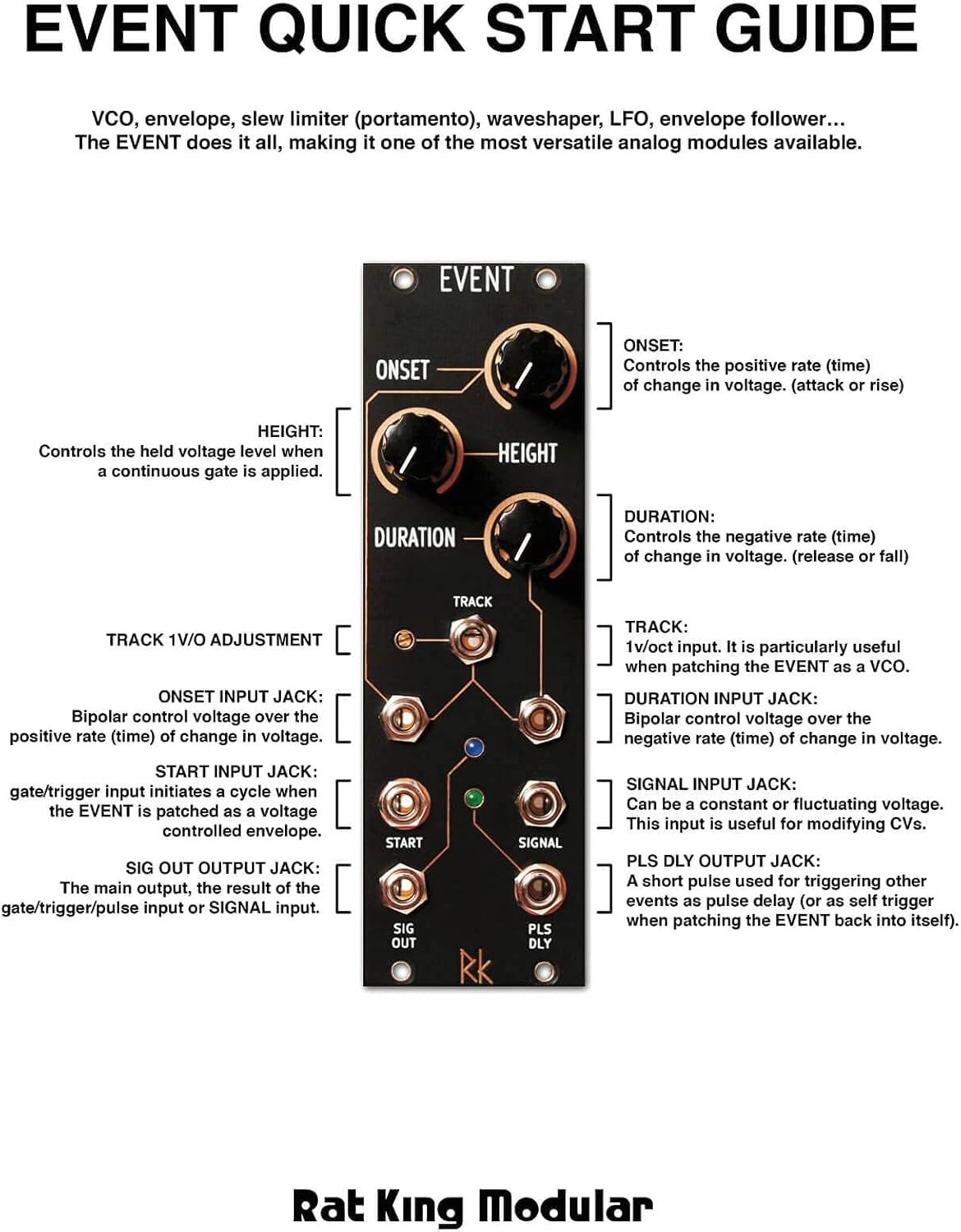

Controls:
- ONSET: Controls the positive rate (time) of change in voltage. It has a bipolar CV input jack.
- DURATION: Controls the negative rate (time) of change in voltage. It has a bipolar CV input jack.
- HEIGHT: Controls the held voltage level when a continuous gate is applied.
- TRACK: 1v/oct input. It is particularly useful when patching the EVENT as a VCO.
- START: A simple gate/trigger/pulse input that initiates a cycle when the EVENT is patched as a voltage controlled envelope.
- SIGNAL input: Can be a constant or fluctuating voltage. This input is particularly useful for mangling CVs.
- SIG OUT: The main output, the result of the gate/trigger/pulse input or SIGNAL input.
- PLS DLY: A short pulse used for triggering other events as pulse delay (or as self trigger when patching the EVENT back into itself).
Specifications:
- Module width: 8HP
- Module depth: 22mm
- Current draw:
- +12V: 50mA
- -12V: 43mA
-
