LP9 Racer Edition LED Auxiliary Light Pod - Universal
-
Detail

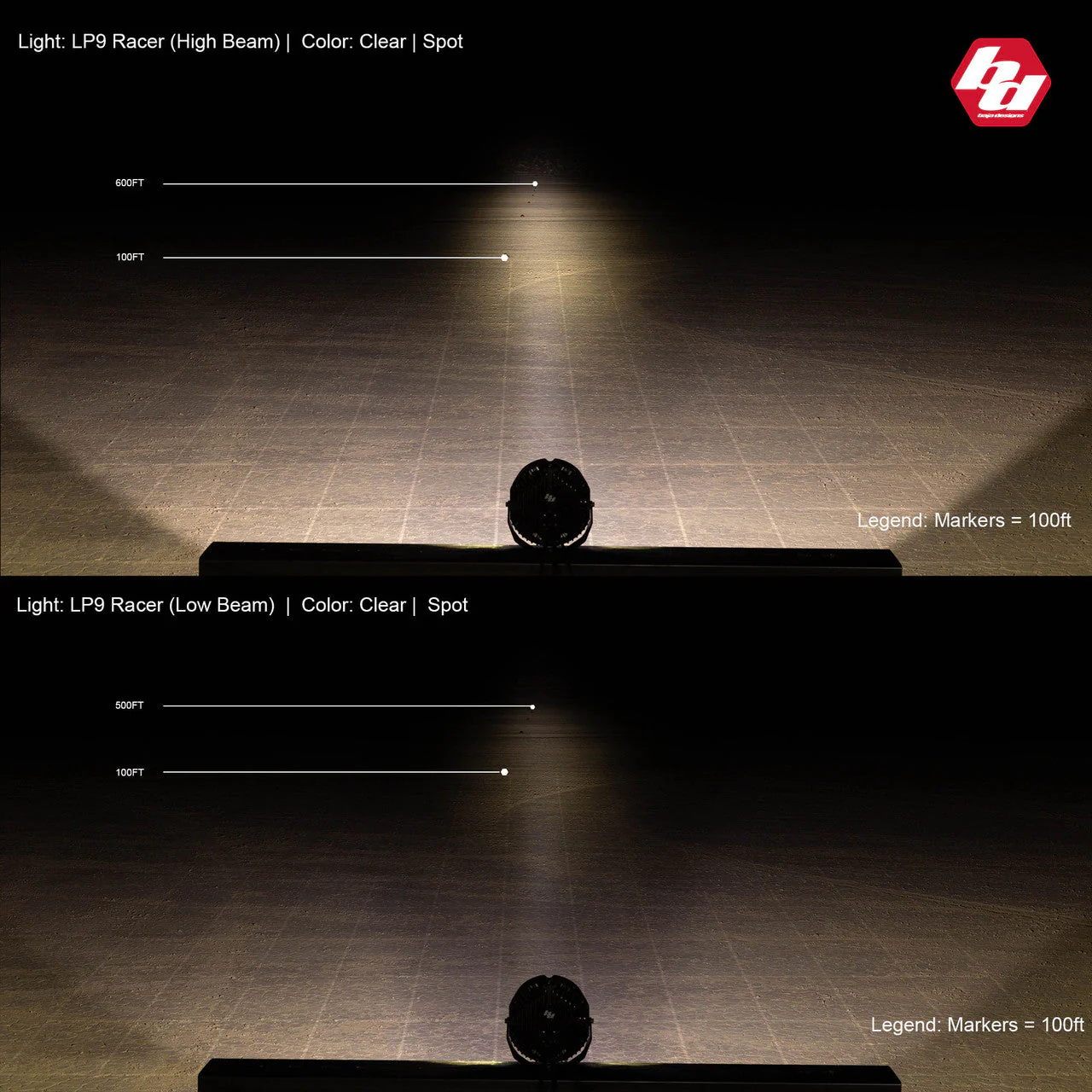

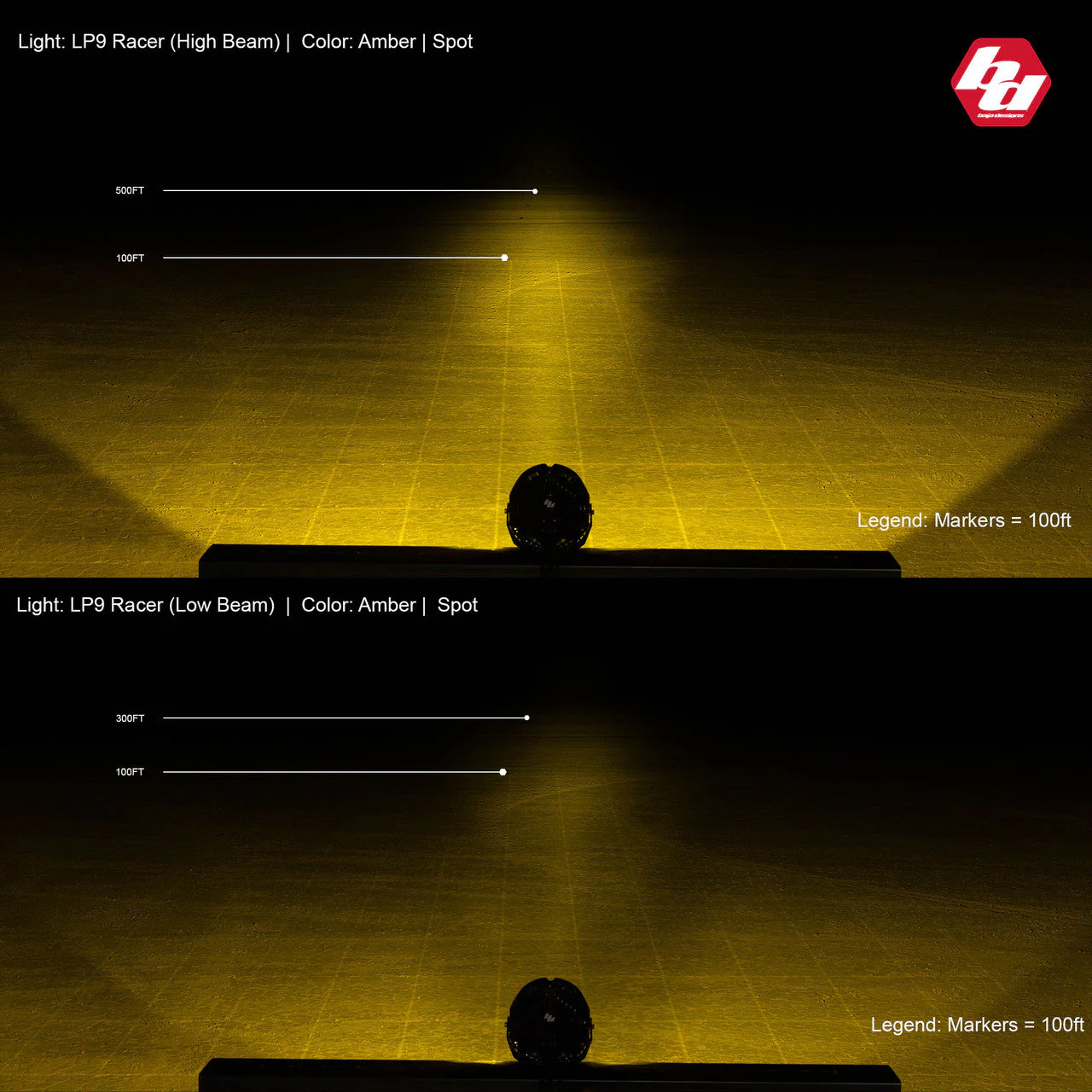

A design that was inspired by Baja Designs’ legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light. The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs. Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Amperage Rating (A) 9.600 Average Rated Life (hr.) 49,930 Backlight Amperage Rating (A) 0.200 Backlight Wattage (W) 2.800 Beam Pattern Racer Edition Spot Bezel Material Billet Machined Aluminum Brightness (Lumens) 8374 Description Racer Edition Spot; Amber Housing Color Black Housing Material Hard Anodized Machined Aluminum Lens Color Amber / Clear Lens Material Hardcoated Polycarbonate Light Quantity 1 Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting Lighting Quantity 9 Lighting Technology LED Lighting Type Forward Projecting Mounting Hardware Included Yes Mounting Hardware Material Stainless Steel Overvoltage Protection Built-In Product Type LP9 Racer Edition LED Light Pod Secondary Amperage Rating (A) 1.520 Secondary Brightness (Lumens) 2302 Secondary Light Quantity 6 LEDs Secondary Lighting Technology LED Secondary Lighting Type Integrated Peripheral Technology (IPT) Secondary Wattage (W) 21 Terminal Connector DT06-4S Deutsch Terminal Type Mating Connector Universal or Specific Universal Wattage (W) 132.480 Wiring Harness Included No -
