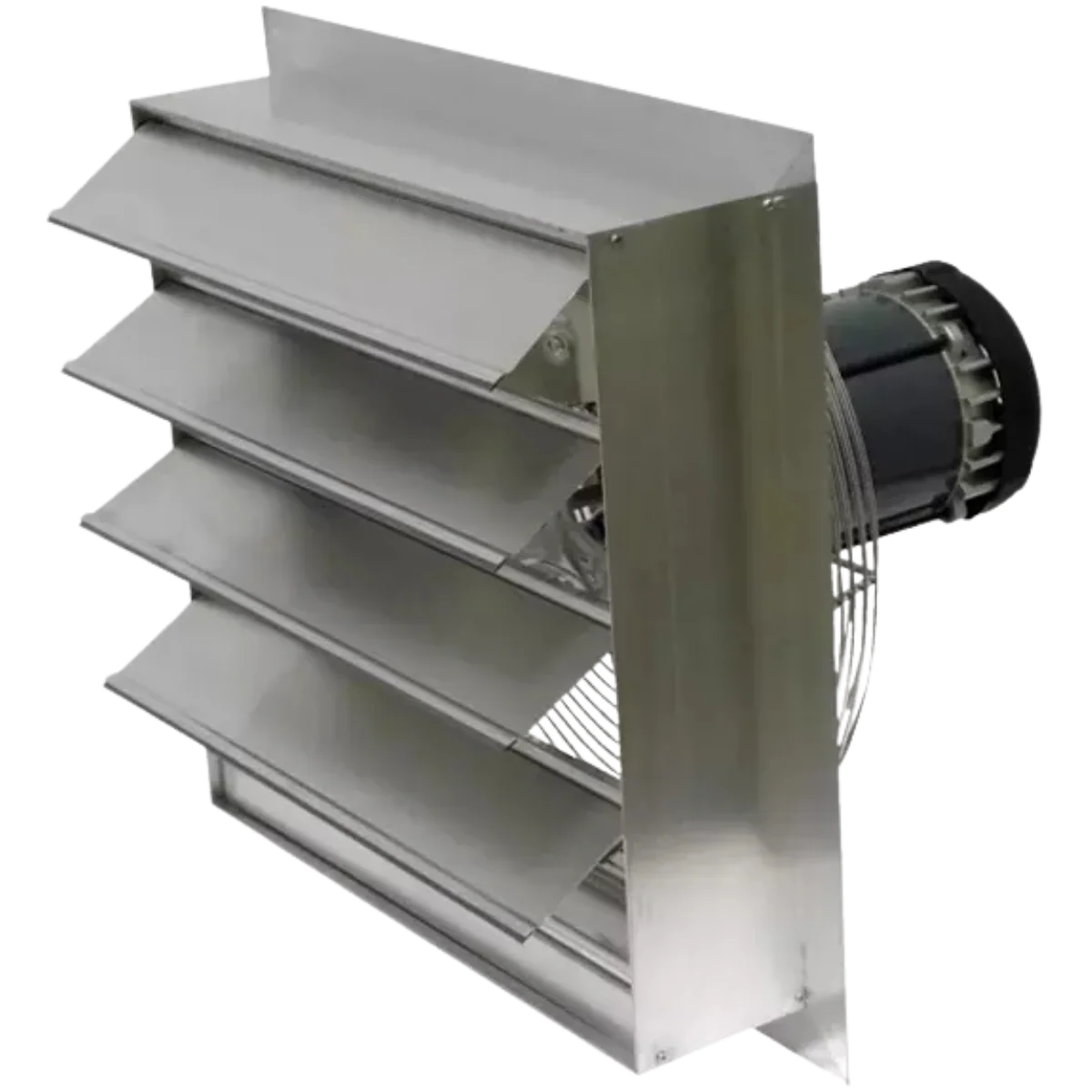

Canarm 14-in. AX Series Direct Drive Shutter Mounted Aluminum Exhaust Fan

Vent stale air quickly with the Canarm 14-inch AX Series Direct Drive Shutter Mounted Aluminum Exhaust Fan, a powerful solution for horizontal wall ventilation in agricultural and commercial settings. This direct-drive fan is designed for continuous operation to reduce heat buildup, control odors, or improve air circulation in facilities without complicated installation.

By combining an efficient motor with integrated aluminum shutters, it offers a reliable approach for general ventilation and consisten air exhange of factories, garages, agricultural buildings, and warehouses.

Key Features and Benefits of the Canarm 14-inch AX Series Direct Drive Shutter-Mounted Exhaust Fan

• Direct-Drive Efficiency: Motors are mounted on a heavy gauge welded steel rod.
• Automatic Aluminum Shutters: The aluminum shutters seal tightly when the fan is off, helping prevent backdrafts, rain intrusion, and energy loss.
• Totally Enclosed Motor: The totally enclosed, thermally protected motor is protected from dust, debris, and overheating.
• OSHA-Compliant Guards: A chrome-plated wire safety guard on the intake side of the fan protects personnel and meets workplace safety requirements.
• Ships Fully Assembled: Pre-assembled components allow for quick set-up.
• Multiple Speed Options:
  • Single Speed: Model AX14-2 is 115V, 1/4 HP, 2170 CFM
  • Two Speed: Model AX14-3 is 115V, 1/4 HP, 2190/1440 CFM
  • Variable Speed: Model AX14-1VHE is 115V, 1/15 HP HE motor, 1600 CFM
  • Single/Variable Speed: Model AX14-1V is 115/230V, 1/3 HP, 2170 CFM

Note: For variable speed operation, a variable speed controller is required.

Ready for Installation

This fan’s aluminum housing measures 18 3/4 x 18 3/4 x 5 inches, and can be installed in standard 16 x 16-inch openings. Because this model has a totally enclosed air over motor, you can mount the fan in dusty woodworking shops, equipment rooms, or livestock barns without risking premature failure.

Sylvane’s Expert Take

If you need a straightforward exhaust fan that installs easily and works hard, the Canarm 14-inch AX Series hits the mark. Its direct-drive motor and aluminum shutters minimize parts that wear out, and the airflow output up to 2,190 CFM covers a wide range of medium-sized rooms. For facility managers seeking a dependable shutter exhaust fan that balances performance, durability, and simple maintenance, this model is an easy choice.
