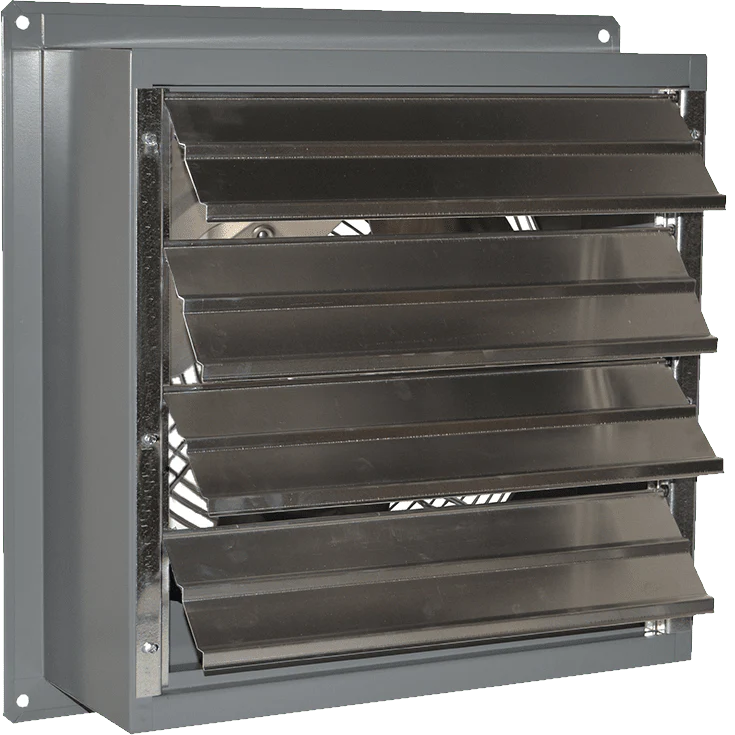

Canarm 16-in. Shutter Mounted Exhaust Fan

Canarm 16-inch Shutter Mounted Exhaust Fans are equipped with a totally enclosed, thermally protected motor which is mounted on heavy-gauge steel rod motor mounts. Select a single-speed, two-speed, or variable speed model based on your requirements.

Easy to Install

Depending on which model you select, your motor will operate using the following voltage set-up. Full instructions are included to make installation fast and easy.

• Single Speed Fan: 120-volt only; requires a simple toggle switch.
• Two Speed Fan: 120-volt only; requires a 2-speed control or a 3-position toggle switch.
• Variable Speed Fan: Dual voltage, pre-wired at 240-volt but can be rewired for 120-volt; requires a variable-speed control.

Durable Construction

A rugged steel welded box housing is built to last and the aluminum shutters are supported by long-life nylon bushings and operate automatically when the fan is in use.

Specification Highlights

• Durable steel construction has a gray powder coat finish that resists rust and corrosion.
• OSHA certified with a heavy wire chrome-plated guard.
• Framing Dimensions: 19-in. x 19-in.
• ETL Certified
