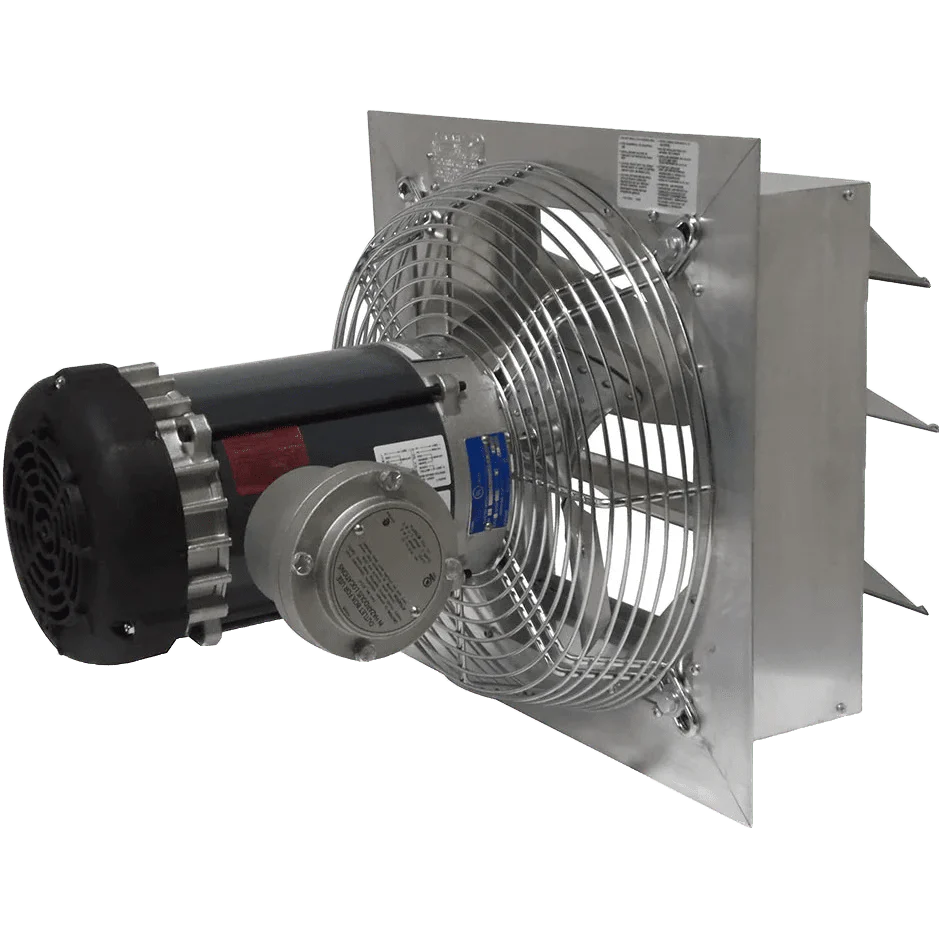

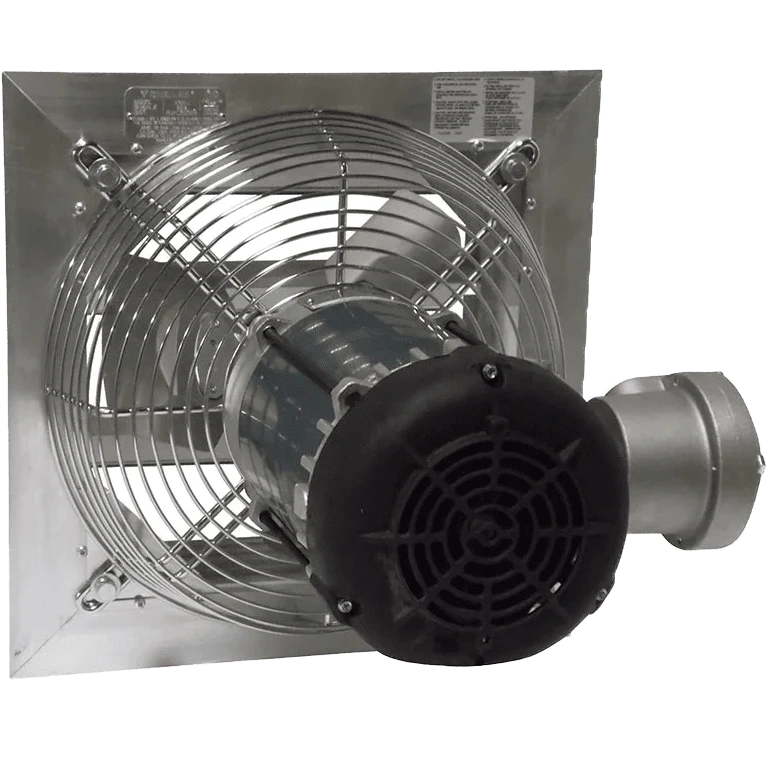

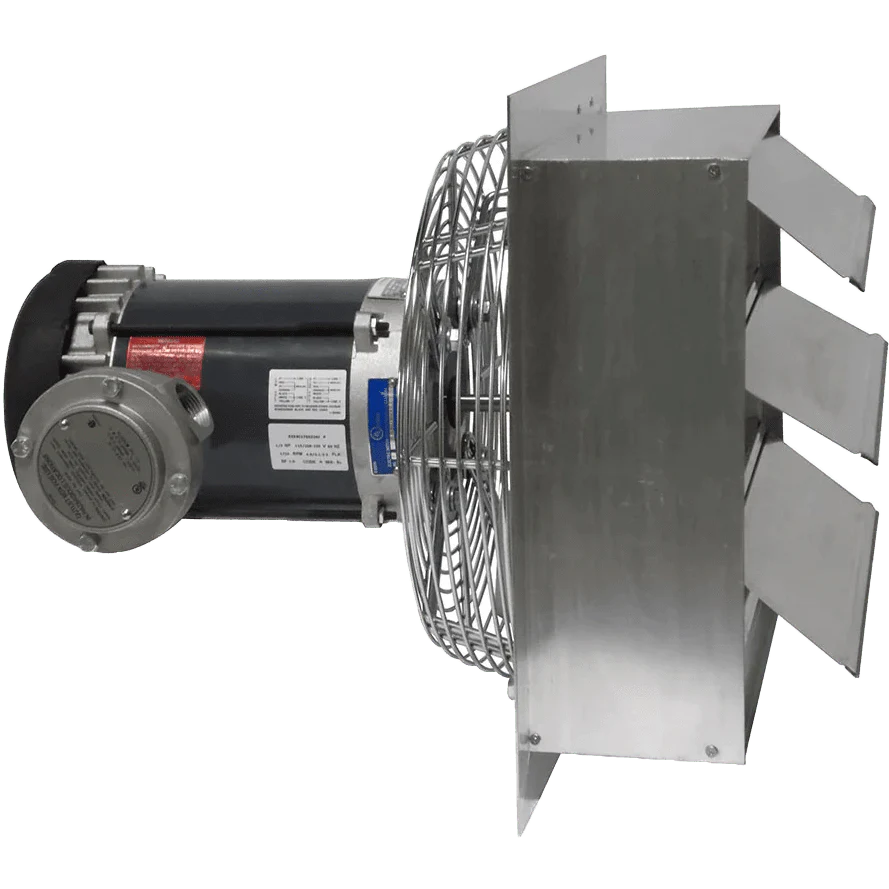

Canarm AX 24-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan

The largest of the Canarm explosion-proof AX Series fans, this 24-inch model delivers general ventilation to commercial, industrial, and farming applications. Its explosion-proof motor makes it a safe option for use in facilities containing combustible materials. Easy to use and operate, this unit provides a maximum airflow of 5,520 CFM. It's available in single-phase and three-phase options.

Explosion Proof Motor

This is an explosion-proof fan that meets and conforms to the following standards:

• Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
• Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
• Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
• Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.

Key Features Of The Canarm AX Series Fan

• Multiple Options: Select from single-phase or three-phase options.
• Powerful Airflow: This direct-drive, horizontal discharge fan provides an airflow of up 5,520 CFM.
• Durable Design: Its housing is constructed of heavy-duty aluminum.
• Shutter Design: The fan's shutters automatically open when the fan starts and gravity closes when the fan stops.
• OSHA Guards: Has heavy wire chrome-plated OSHA guards on the intake side of the fan.
• Overload Protection: Provides an extra layer of safety.
• Ships Fully Assembled: This fan is ready for use right out of the box.
• Framing Dimensions: 26" x 26"

Summary

Deliver up to 5,520 CFM of general ventilation with this 24-inch explosion-proof fan from Canarm.
