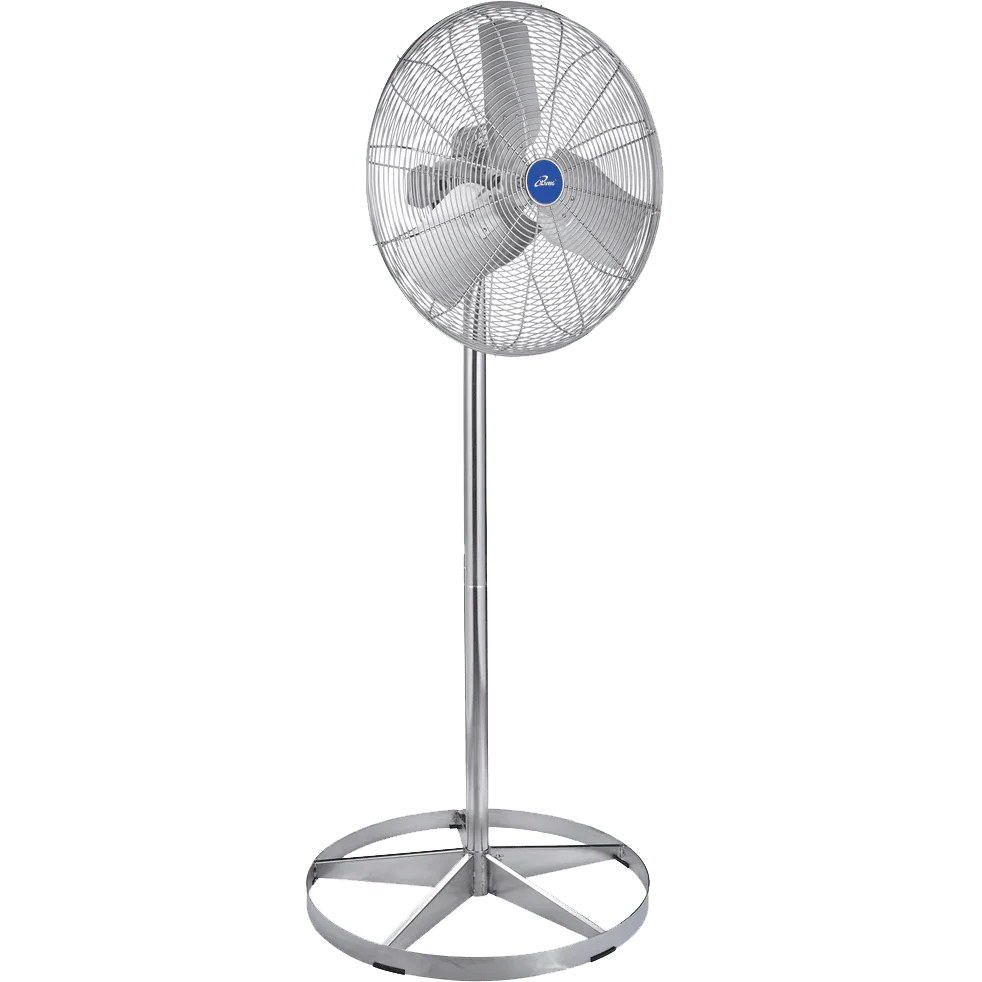

iLIVING Pedestal Washdown Fan

The iLiving Pedestal Washdown Fans feature the same powerful and durable construction as the wall-mount washdown fans, and also include a steel pedestal for greater portability.

Available in 24-inch or 30-inch, these pedestal fans are ideal for use in commercial kitchens, food and beverage plants, processing facilities, hospitals, and more.

Designed for Tough Environments

Equipped with a totally enclosed motor with a junction box, these iLiving wash down fans are IP55 rated for use in moist, wet, humid, and corrosive spaces. They can withstand being washed with hot water and caustic solutions without impacting performance.

Note: These fans are not intended for use in dangerous locations such as flammable, explosive, or chemical-laden atmospheres.

Powerful Cooling Solution

These pedestal fans create powerful airflow to create a comfortable environment for employees working in food zones. With a dual voltage motor, they can be wired for 115 volts or 230 volts using the appropriate power cord.

• 24-inch: 1/4 horsepower motor provides up to 7200 CFM, 1050 RPM, and 301W
• 30-inch: 1/3 horsepower motor provides up to 9600 CFM, 1050 RPM, and 335W

A power cord is not included with these fans, allowing you to select the correct cord for your use depending on voltage and socket configuration you need, as well as cord length.

• 115-volt: Select NEMA 5-15P, 5-20P, 5-30P, or 5-50P
• 230-volt: Select NEMA 6-15P, 6-20P, 6-30P, or 6-50P

Additional Features

• OSHA Compliant: Grille guards are sized in compliance with OSHA regulations for safe operation.
• Tiltable Fan Head: In addition to being easy to move from place to place, the fan head can be tilted up or down to direct airflow where most needed.
• Assembly: iLiving wash down fans do require assembly and mounting on the included stainless-steel pedestal.
• Grounding Required: During installation, the fan must be grounded and installed in a GFCI-protected branch circuit.
• Power Cord: A power cord is NOT included with this fan.

Summary

iLiving 24-inch & 30-inch Wash Down Pedestal Fans are designed for use in wet, humid, or corrosive environments, are IP55 rated for used in food zones, and are constructed from 304 stainless-steel for durability. Features dual voltage option.
